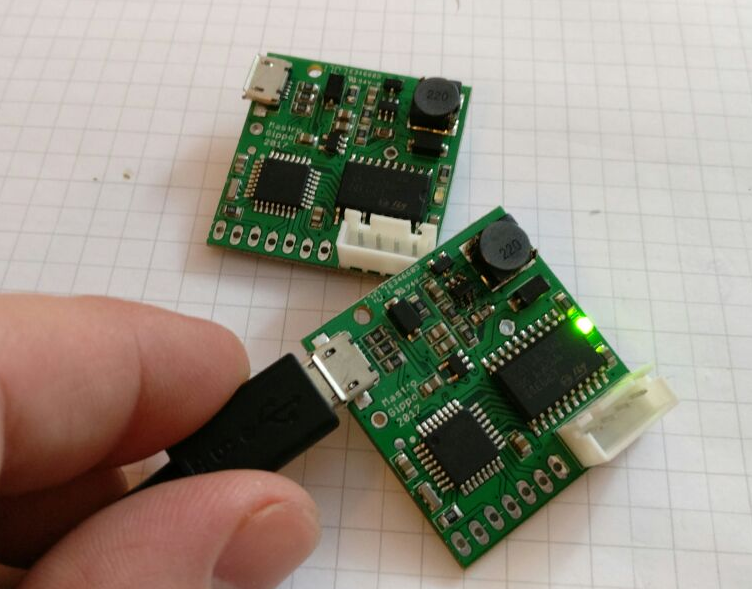

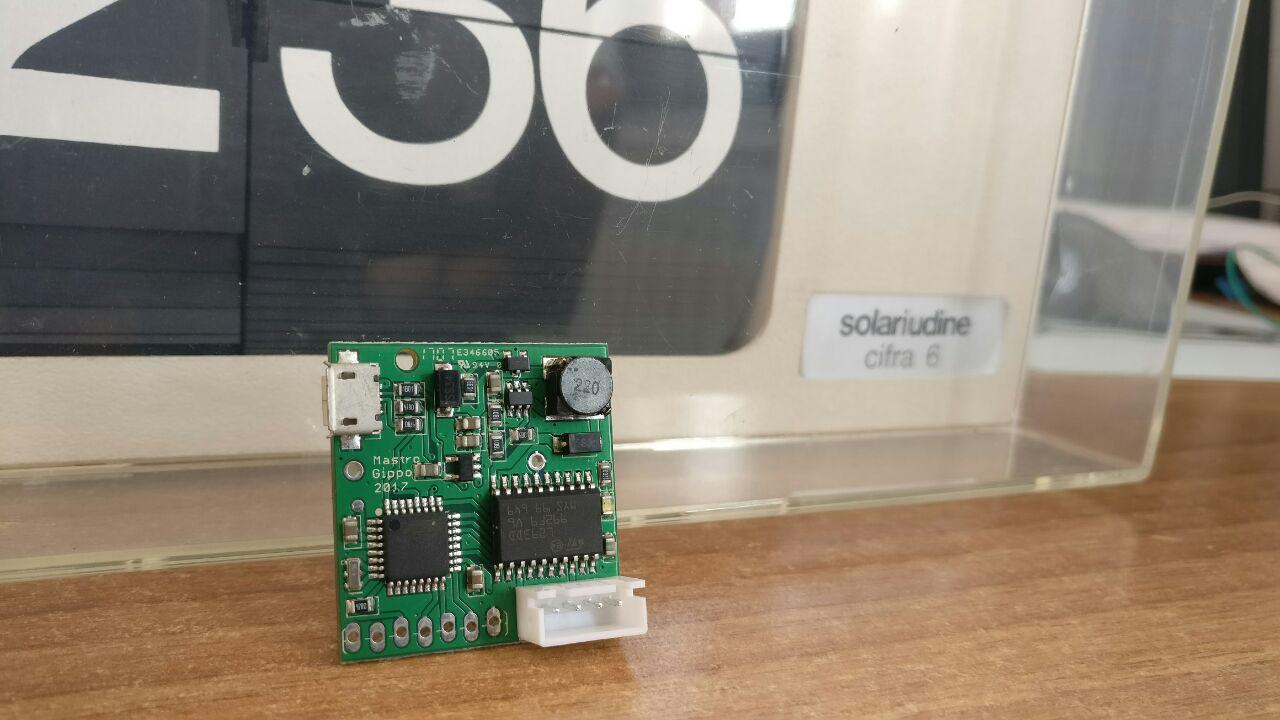

10 years after developing the first prototype of the mechanical clock driver, I have improved the original idea with new features. The purpose and basic function remain similar, but I have created two versions: an affordable, no-frills Basic version, and a WiFi version with advanced functionalities.
- WiFi version: allows access to clock settings and time adjustment even if the board is not physically accessible.
- Flexible power supply: the board can be powered by any inexpensive USB power supply (not included) that provides 5V, instead of a costly, bulky, and hard-to-find 24V power supply.
- The WiFi version can be powered by an external power source from 9 to 26V; in this case, the output voltage will match the input power voltage.
- Compact size: only 37x36mm for the basic version and 58x36mm for the WiFi version, with 4 easily removable screw supports (dia. 4mm) (25x36mm and 51x36mm when removing supports).
- 12V or 24V output
- Easily adjustable pulse interval
- Optional backup battery input, allowing the clock to continue running even without power (WiFi version only).
- Manual advance button and external input
- Quick advance of 60 pulses via WiFi
- Temperature-compensated quartz version with ±1 minute error per year, or basic version with ±8 minutes error per year.
| Basic | WiFi | |
| Power input: micro USB 5V | ✅ | ✅ |
| External power input (12V/24V) | ✅ | |
| Configurable output 12V / 24V | ✅ (S) | ✅ (W) |
| Multiple clocks in parallel | ✅ (max 200mA) | ✅ (max 500mA via USB, max 1A with power adapter) |
| Screw terminal outputs | ✅ | ✅ |
| 1-pulse advance | ✅ (button) | ✅ (2) |
| 60-pulse advance | ✅ (W) | |
| Bipolar pulse | ✅ | ✅ (W) |
| Monopolar pulse | ✅ (W) | |
| Adjustable pulse duration | 1s or 2.5s (S) | Adjustable from 0.1s to 2.6s (W) |
| Adjustable pulse interval | Every 30s or every 60s | Adjustable from 1s to 250s |
| Dimensions | 25mm x 36mm (excluding screw holes) | 51mm x 36mm (excluding screw holes) |
| Backup battery connection | ✅ | |
| WiFi | ✅ | |
| Upgradable | ✅ | |
| Price, 8 min/year accuracy version | €42 | €59 |
| Price, 1 min/year accuracy version | €74 |
(W) = configurable via WiFi
(S) = configurable with a soldered jumper
(2) = controllable with a physical button or via WiFi
IMPORTANT! Before ordering the board, follow the instructions to verify the clock’s functionality.
Manual for WiFi version:
Manual for Basic version:
NOTE: Shipping cost is valid for Europe and may vary for remote areas and islands. I will contact you if the price is different.
For larger quantities, customizations, or to receive more information, please fill out the form:
Versioni precedenti
Manuale per la versione 4: ClockDrive-ita_v4
Manuale per la versione 3: ClockDrive-ita
